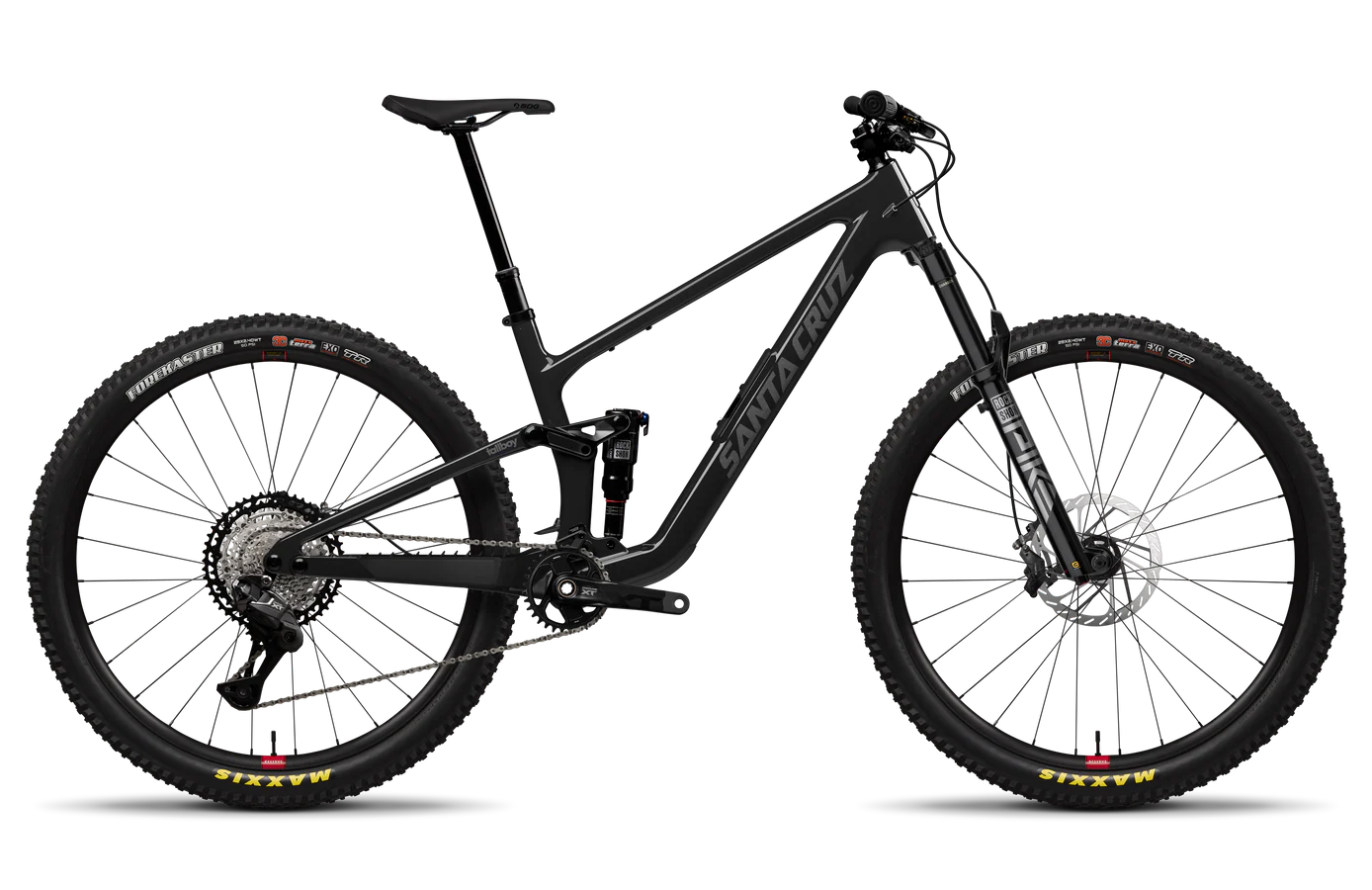

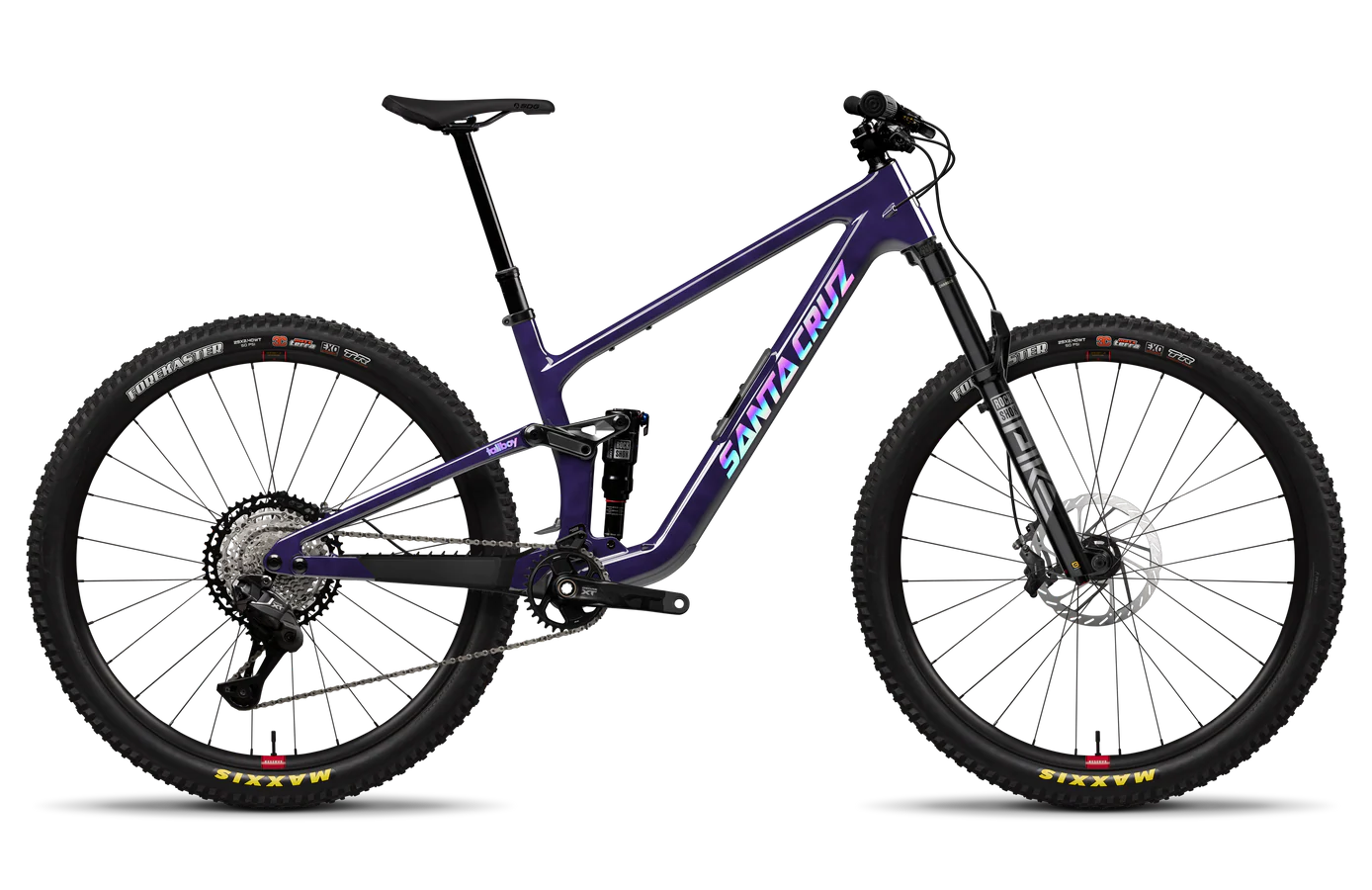

Santa Cruz Tallboy XT Di2
Santa Cruz Tallboy XT Di2
Couldn't load pickup availability
Pay by finance available
Pay by finance available
We offer finance for up to 36 months. Use the calculator below to calculate your finance and can be purchased online at our checkout.
Bike to work schemes
Bike to work schemes
We accept most bike to work scheme vouchers with no extra charges. More information click here. Please contact us for purchasing.
Not in stock?
Not in stock?
We have access to lots bike that are not currently in stock at the shop. Please contact us for availability.
- Carbon CC Frame
- RockShox Pike Ultimate Fork
- RockShox Deluxe Ultimate Shock
- Shimano XT M8250 Di2 Drivetrain
The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.
| Frame | |
|---|---|
|
Material |
Carbon CC |
|
Frame |
Carbon CC 29" 130mm Travel 4-Bar |
|
Travel |
130mm |
|
Weight |
29.7 lbs / 13.47 kg |
|
Wheel Size |
29" |
| Suspension | |
|
Fork |
RockShox Pike Ultimate, 140mm |
|
Shock |
RockShox Deluxe Ultimate, 185x50 |
| Drivetrain | |
|
Bottom Bracket |
Shimano MT801 Threaded |
|
Cassette |
Shimamo XT M8200, 10-51t |
|
Chain |
Shimano XT M8100, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
Shimano XT M8200, 32t XS-S: 165mm, M-XXL: 170mm |
|
Rear Derailleur |
Shimano XT M8250 Di2, SGS, 12spd |
|
Right Shifter |
Shimano Deore XT M8250 Shift Switch w/ Wolf Tooth Shiftmount Adapter for MM |
| Brakes | |
|
Brakes |
SRAM Motive Silver |
|
Front Rotor |
SRAM HS2 200mm |
|
Rear Rotor |
SRAM HS2 180mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
|
Handlebars |
OneUp Carbon Bar, 35mm XS-M: 760mm, 20mm Rise, L-XXL: 800mm, 35mm Rise |
|
Headset |
Cane Creek 50 IS Integrated Headset |
|
Saddle |
SDG Bel-Air V3 Lux-Alloy Atmos |
|
Seatpost |
OneUp Dropper Post, 31.6 XS: 120mm, S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm |
|
Stem |
Santa Cruz CNC All Sizes: 40mm |
| Wheels | |
|
Front Rim |
Reserve 30|SL AL 6069 |
|
Front Hub |
DT Swiss 350, 15x110, 6-Bolt, 28h |
|
Front Tire |
Maxxis Forekaster 29"x2.4", MaxxTerra, EXO |
|
Rear Rim |
Reserve 30|SL AL 6069 |
|
Rear Hub |
DT Swiss 350 DEG DF, 12x148, MicroSpline, 6-Bolt, 28h |
|
Rear Tire |
Maxxis Forekaster 29"x2.4", MaxxTerra, EXO |
|
Valves |
Reserve Fillmore Valves |
| Specs | |
|
Bottom Bracket Shell |
73mm Threaded |
|
Rear Brake Mount |
Postmount 180mm |
|
Chainguide Standard |
Integrated upper guide |
|
Chainline |
55 |
|
Derailleur Hanger |
UDH |
|
Downtube Storage |
Glovebox |
|
Shock Length |
185 |
|
Fork Axle to Crown |
554 |
|
Fork Compatibility |
140-150 |
|
Fork Offset |
44 |
|
Headset |
Integrated (IS41/52) |
|
Max Chainring Size |
34 |
|
Max Rotor Size |
203mm |
|
Max Tire Clearance May vary according to tire and rim model |
2.4" |
|
Rear Spacing |
148mm |
|
Rear Travel |
130mm |
|
Recommended Sag |
30% |
|
Seat Clamp Diameter |
36.4 |
|
Seat Post Diameter |
31.6 |
|
Shock Mounting Hardware Lower |
25x8 |
|
Shock Mounting Hardware Upper |
Trunnion |
|
Shock Stroke |
50 |
|
Suspension System |
4-Bar |
|
UDH Compatible |
Yes |
|
Water Bottle Mounts |
1 |
