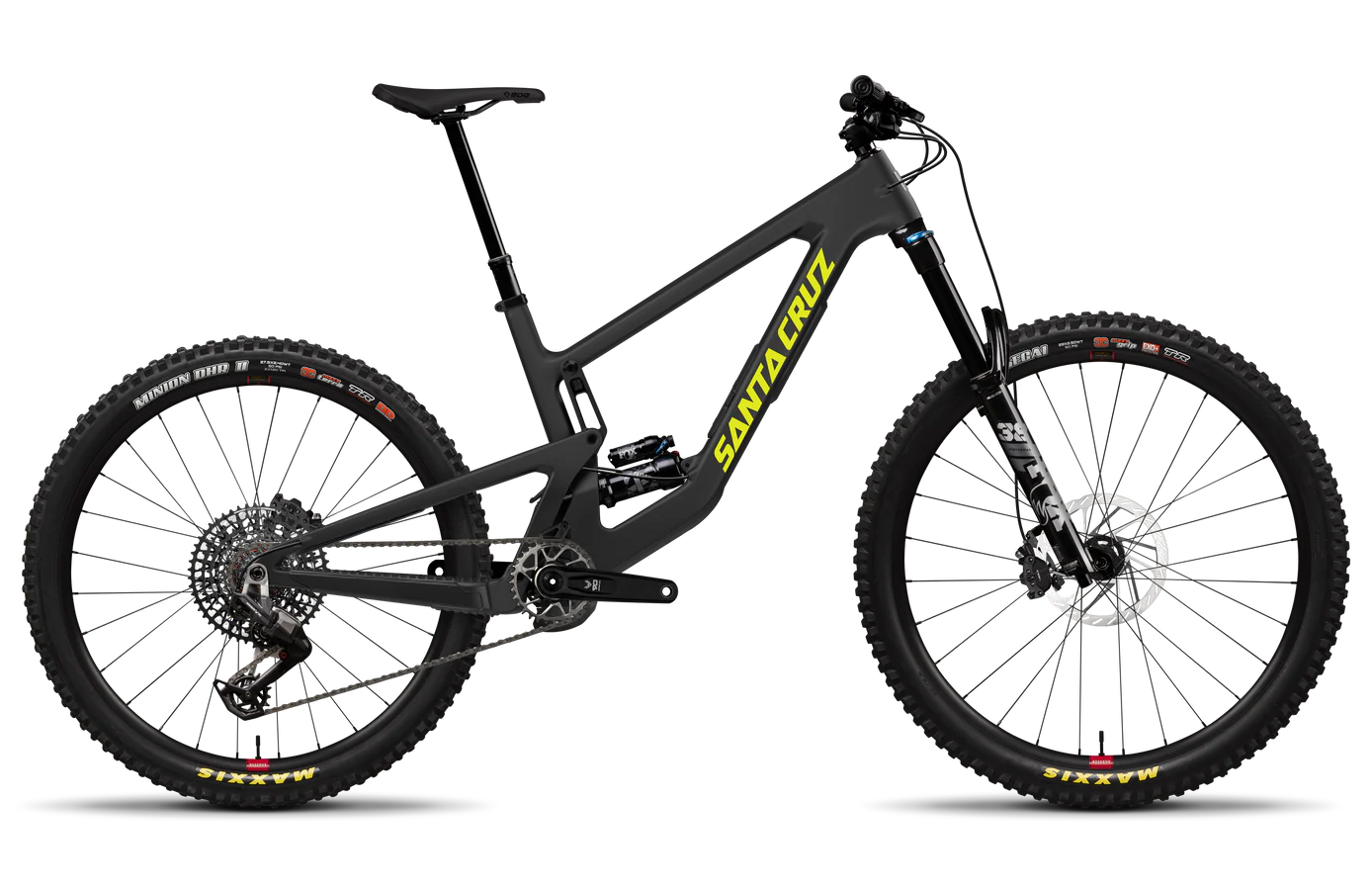

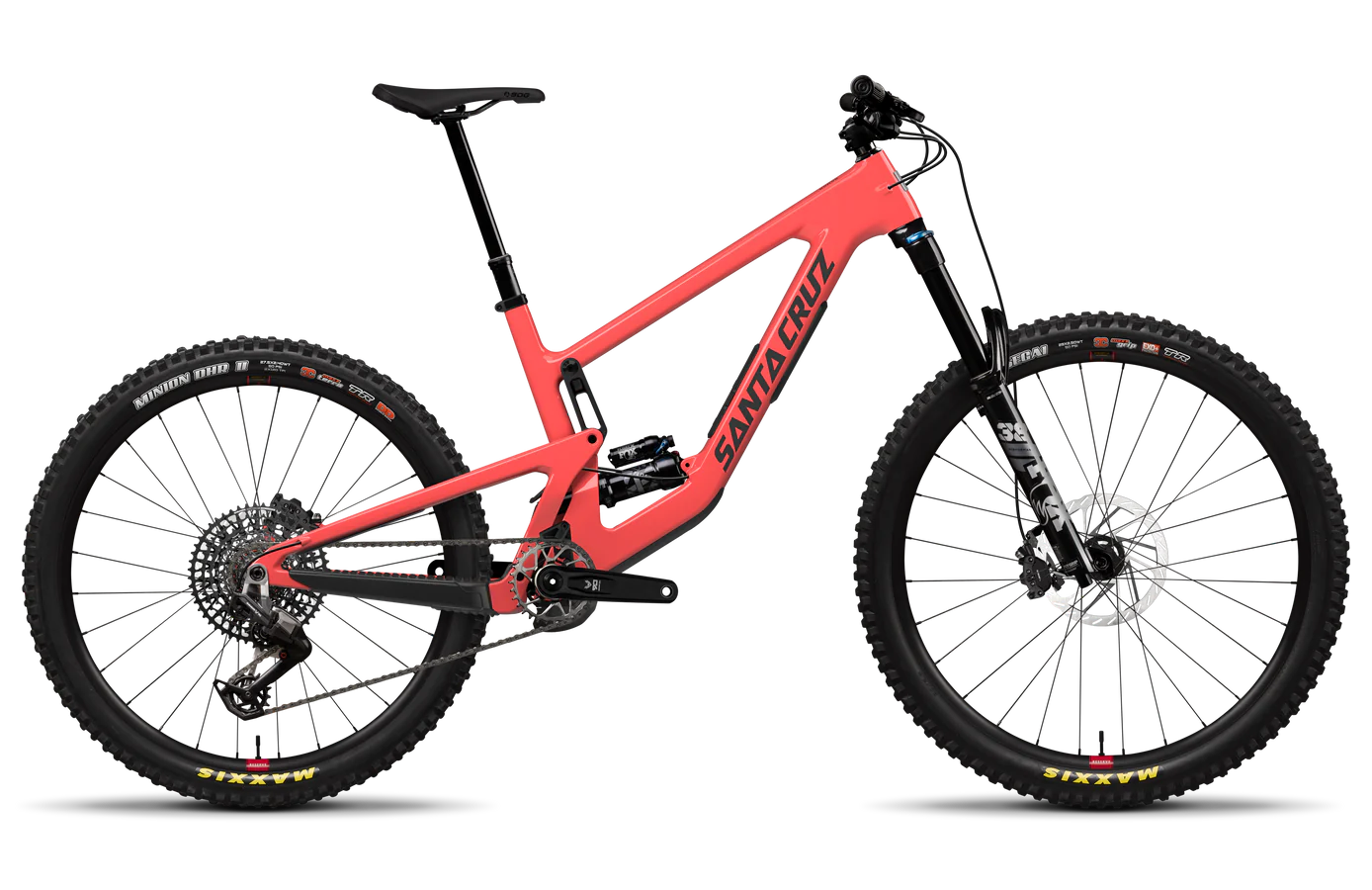

Santa Cruz Nomad 90
Santa Cruz Nomad 90
Couldn't load pickup availability
Pay by finance available
Pay by finance available
We offer finance for up to 36 months. Use the calculator below to calculate your finance and can be purchased online at our checkout.
Bike to work schemes
Bike to work schemes
We accept most bike to work scheme vouchers with no extra charges. More information click here. Please contact us for purchasing.
Not in stock?
Not in stock?
We have access to lots bike that are not currently in stock at the shop. Please contact us for availability.
- Carbon CC Frame
- RockShox Zeb Select Fork
- RockShox Super Deluxe Select Shock
- SRAM 90 Eagle T-Type Drivetrain
Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
| Frame | |
|---|---|
|
Material |
Carbon CC |
|
Frame |
Carbon CC MX 170mm Travel VPP™ |
|
Travel |
170mm |
|
Weight |
35.15 lbs / 15.94 kg |
|
Wheel Size |
MX |
| Suspension | |
|
Fork |
RockShox Zeb Select, 170mm |
|
Shock |
RockShox Super Deluxe Select, 230x65 |
| Drivetrain | |
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB |
|
Cassette |
SRAM XS 1275 Eagle T-Type, 10-52t |
|
Chain |
SRAM GX Eagle T-Type, Flattop, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
SRAM 90 Eagle DUB T-Type, 32t S: 165mm, M-XXL: 170mm |
|
Rear Derailleur |
SRAM 90 Eagle T-Type, 12spd |
|
Right Shifter |
SRAM 90 Eagle T-Type, 12spd |
| Brakes | |
|
Brakes |
SRAM Maven Base |
|
Front Rotor |
SRAM HS2 200mm |
|
Rear Rotor |
SRAM HS2 200mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
|
Handlebars |
OneUp Aluminum Bar, 35mm S: 800mm, 20mm Rise, M-XXL: 800mm, 35mm Rise |
|
Headset |
Cane Creek 50 IS Integrated Headset |
|
Saddle |
SDG Bel-Air V3 Lux-Alloy |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm |
|
Stem |
OneUp Enduro Stem All Sizes: 42mm |
| Wheels | |
|
Front Rim |
Reserve 30|TR AL |
|
Front Hub |
DT Swiss 370, 15x110, 6-Bolt, 28h |
|
Front Tire |
Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+ |
|
Rear Rim |
Reserve 30|HD AL |
|
Rear Hub |
DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h |
|
Rear Tire |
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down |
|
Valves |
Reserve Fillmore Valves |
| Specs | |
|
Headset |
Integrated (IS41/52) |
|
Fork Axle to Crown |
588mm |
|
Fork Offset |
44 |
|
Fork Compatibility |
170-180mm |
|
Suspension System |
VPP™ |
|
Rear Travel |
170mm |
|
Recommended Sag |
30% |
|
Shock Length |
230mm |
|
Shock Stroke |
65mm |
|
Shock Bushing Size Front |
30x8 |
|
Shock Bushing Size Rear |
30x8 |
|
Bottom Bracket Shell |
73mm Threaded |
|
Chainline |
55mm |
|
Max Chainring Size |
36t |
|
Chainguide Standard |
Integrated upper guide+2-bolt ISCG 05 bash mount |
|
UDH Compatible |
Yes |
|
Rear Spacing |
148mm |
|
Rear Brake Mount |
Postmount 200mm |
|
Max Rotor Size |
223mm |
|
Seat Post Diameter |
31.6 |
|
Seat Clamp Diameter |
36.4 |
|
Water Bottle Mounts |
1 |
|
Downtube Storage |
Glovebox |
