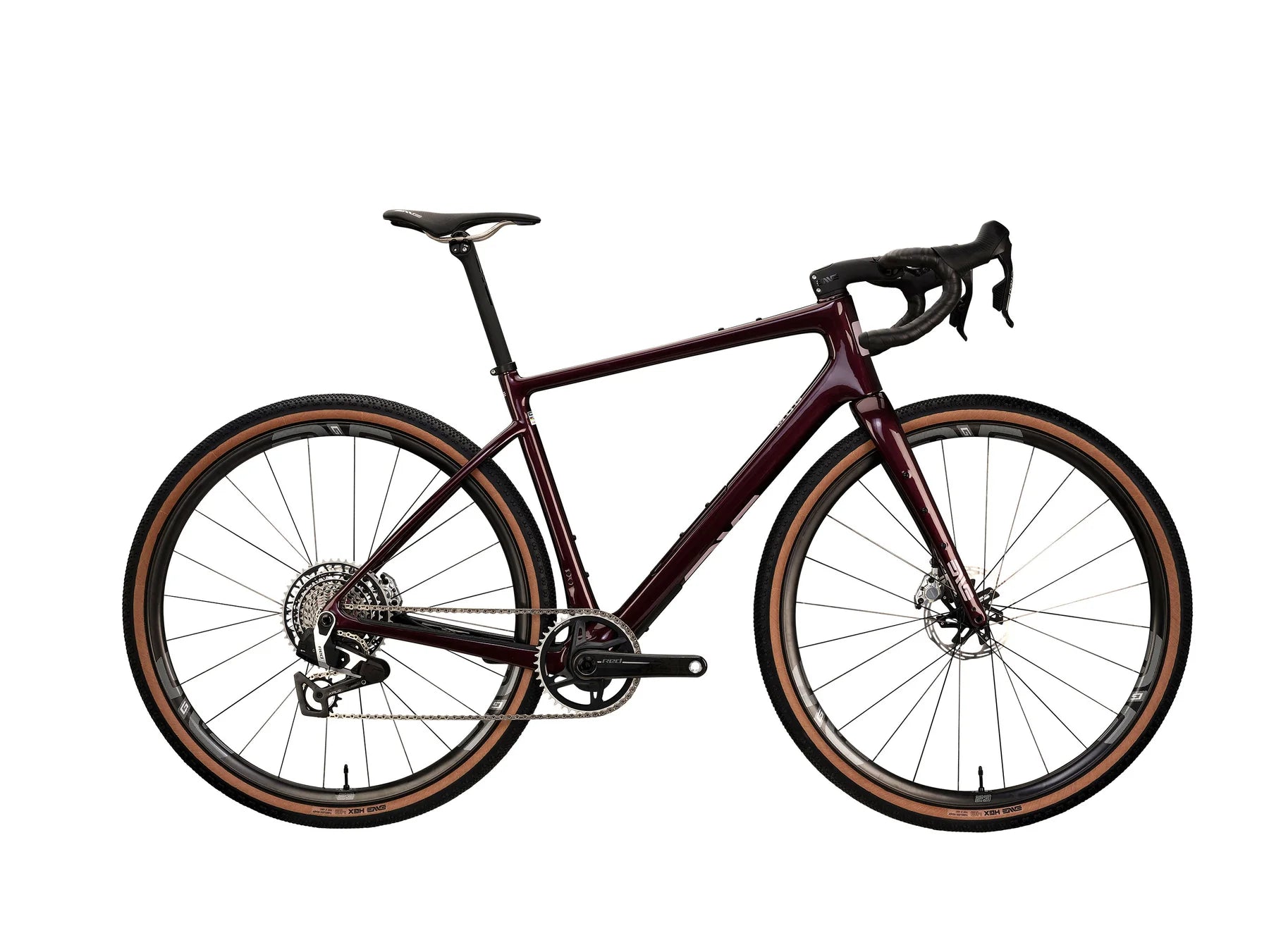

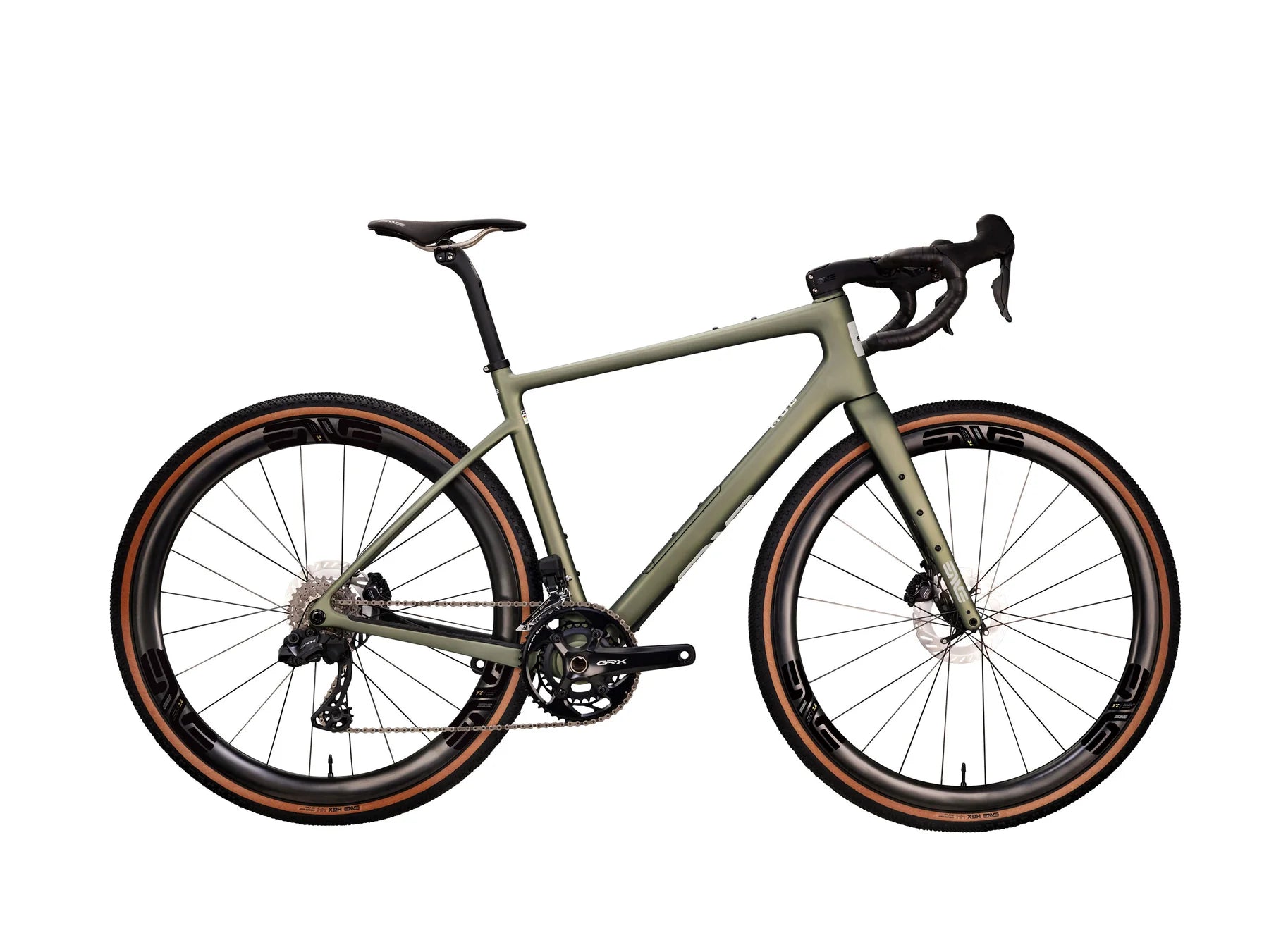

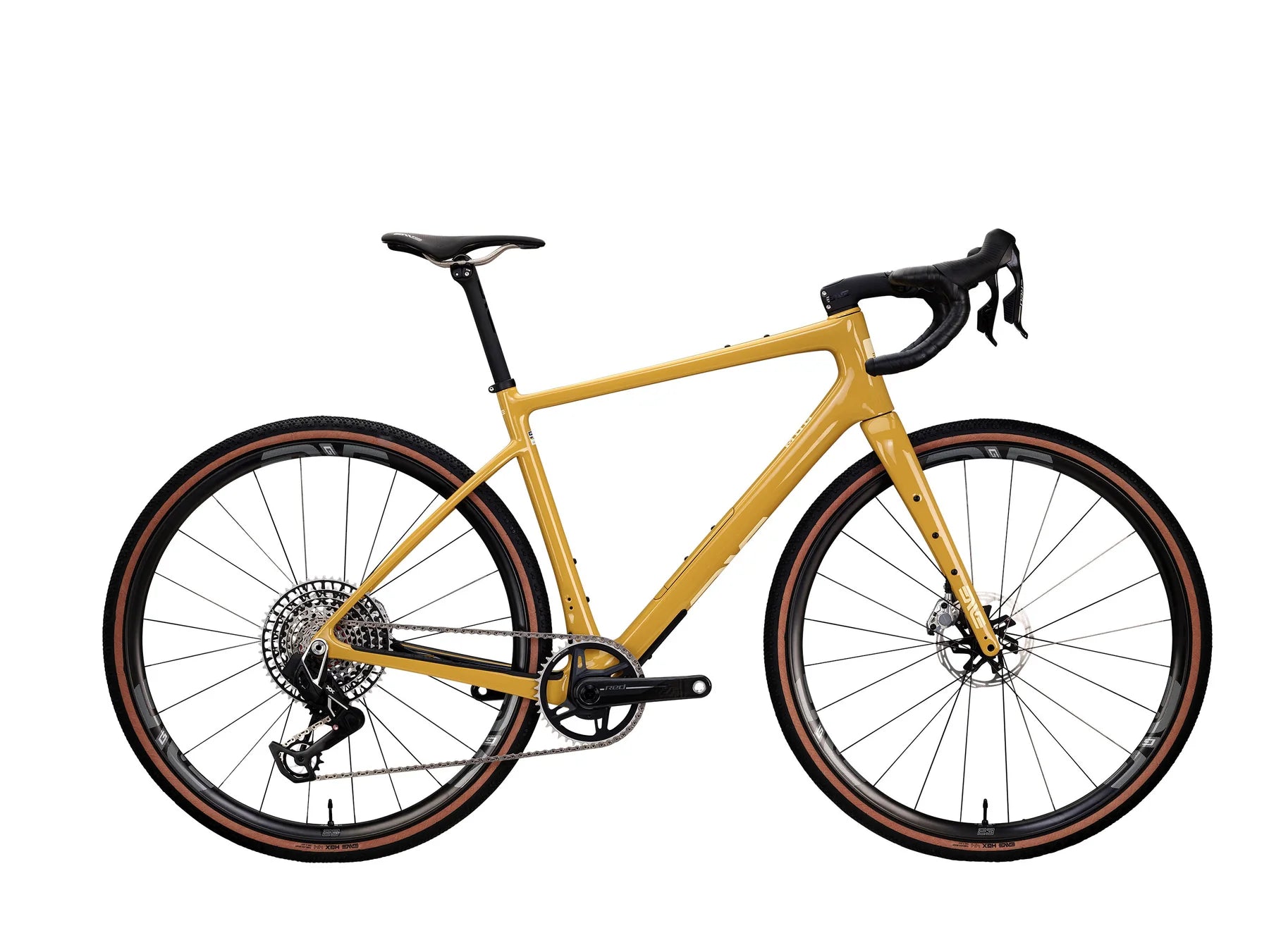

ENVE MOG Frameset Chassis

ENVE MOG Frameset Chassis

£4,800.00 GBP
£4,800.00 GBP
Sale Enquire
Tax included.
Colour
Size

Pay by finance available

We offer finance at 0% for up to 24 months. To calculate your finance click here.

Bike to work schemes

BW Cycling accepts most bike to work scheme vouchers with no extra charges for bikes. Please contact the store to find out more.

Not in stock?

Please enquire for availability.

  • Chassis consists of frame, fork, headset, handlebar, stem and seatpost.

Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.
The MOG is typically sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences.

Product Details:

  • Frame weight: 950 grams (56cm, painted, no hardware)

Frame Specs:

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)

Compatibility:

Handlebars Gravel, SES AR, Compact, SES Aero Road
Stem ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
Seatposts ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2
