- Chassis consists of frame, fork, headset, handlebar, stem and seatpost.

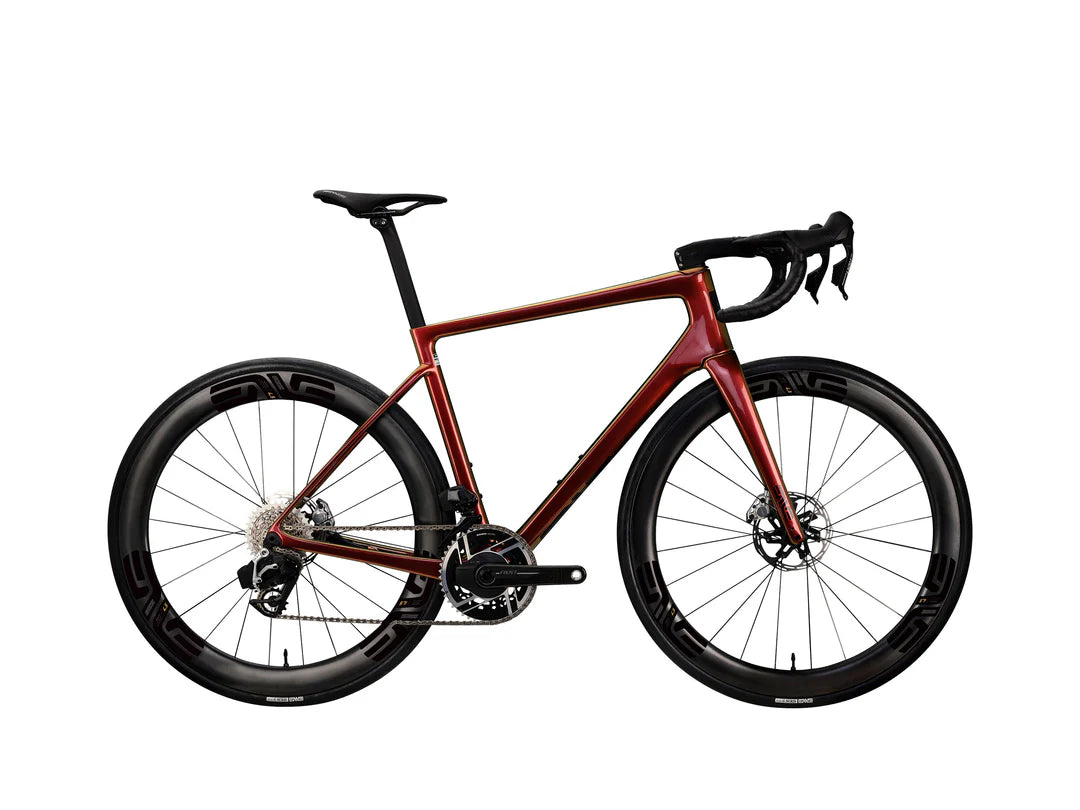

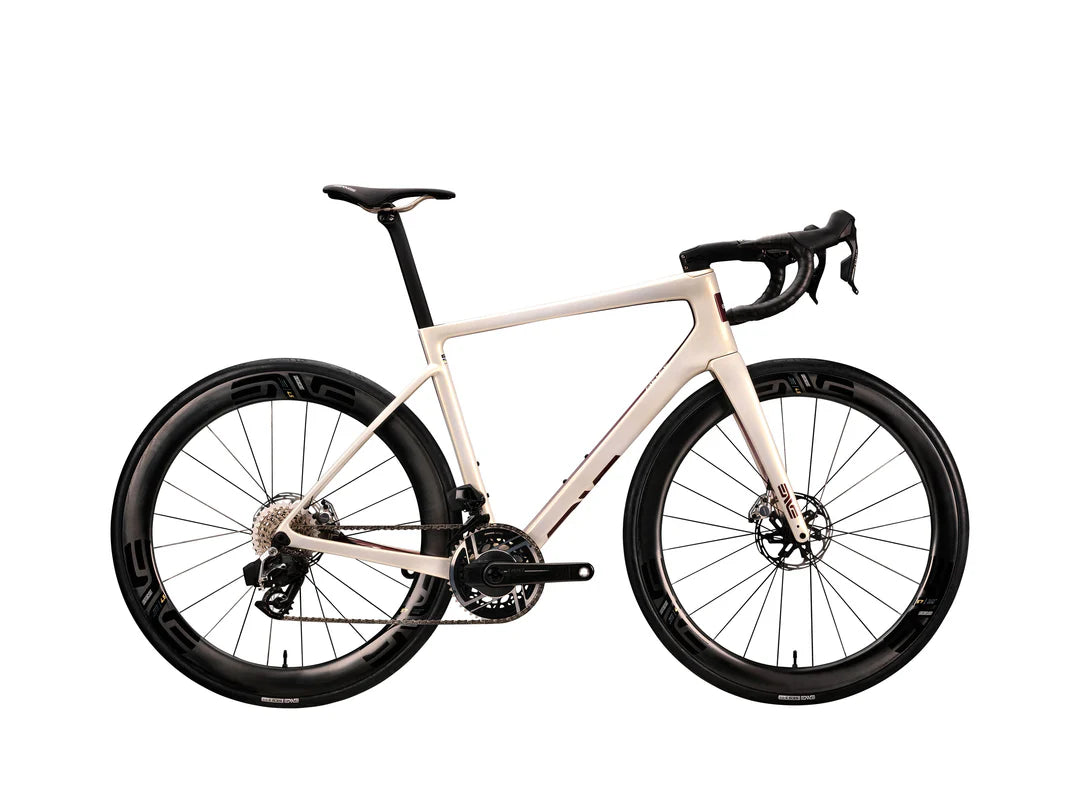

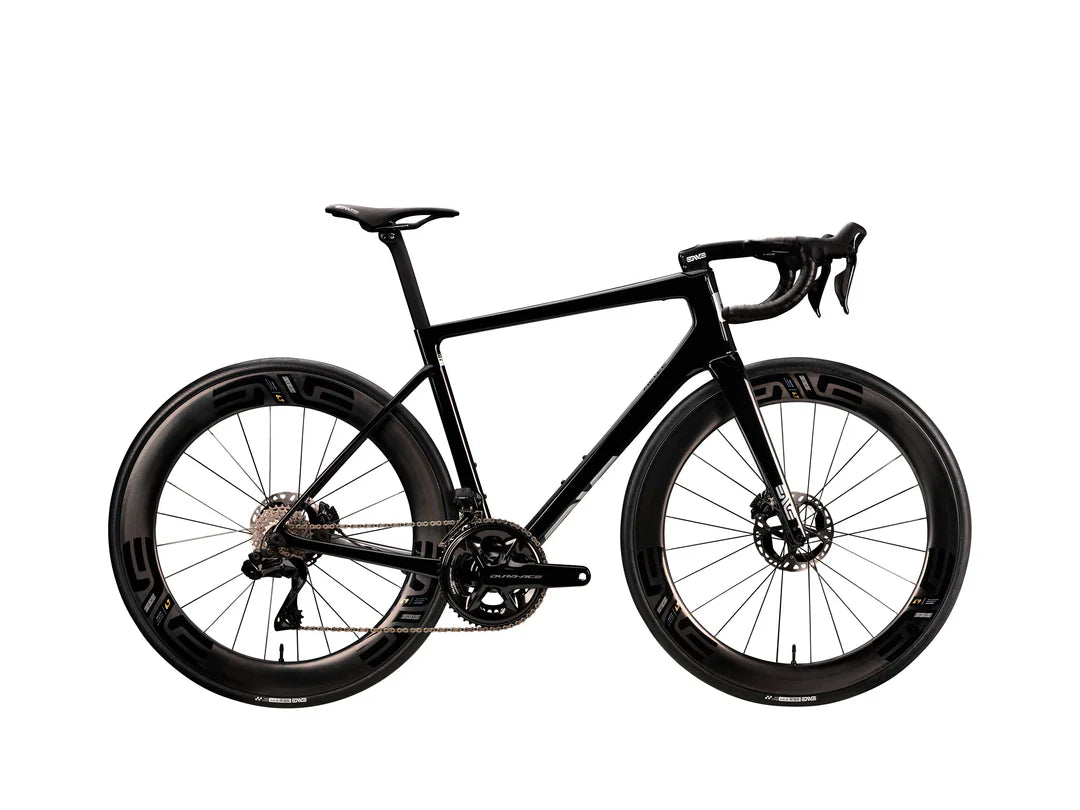

The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.
An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is typically sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
Product Details:
- Real-World Fast™ aero optimization
- Tube shapes complement SES rim shapes
- Max Tire Clearance: 35 mm
- Frame Weight: 850 grams (56cm, Painted, No Hardware)
Frame Specs:
| Frame Material | ENVE M.O.D Carbon |
| Fork Material | ENVE M.O.D Carbon |
| Target Application | Road Race/Performance |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43, 39 |
| Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
| Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.5, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-32c |
| Maximum Listed Tire Clearance | 35c |
| Frame Routing | Internal |
Compatibility:
| Handlebars | SES AR (38, 40, 42, 44, 46) |
| Stem | ENVE Integrated (80, 90, 100, 110, 120, 130) |
| Seat Posts | Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset |
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (Melee requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (Melee requires continuous housing for FD) |
| Campy Wired EPS | No |
| Campy Wireless EPS | Yes |
