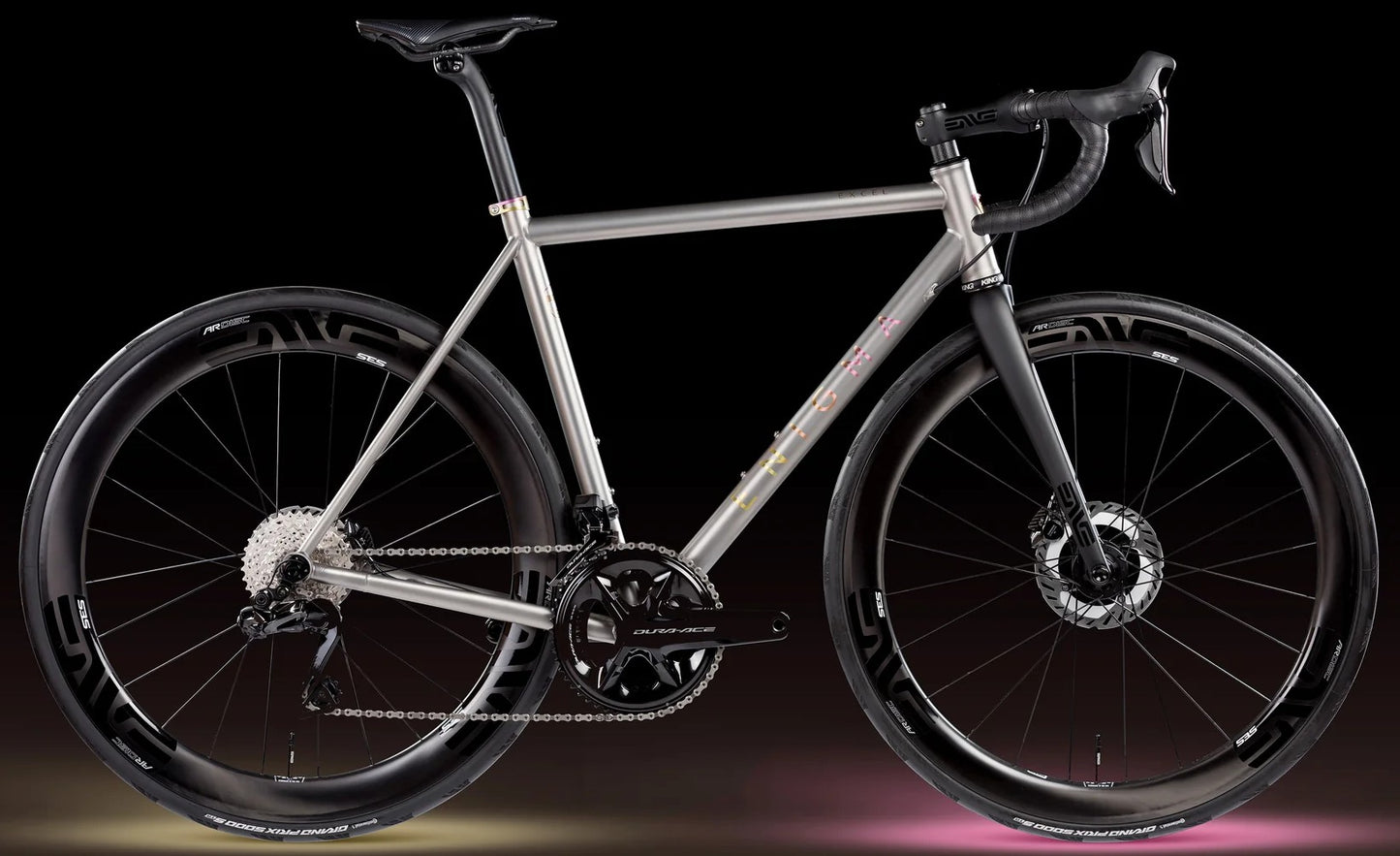

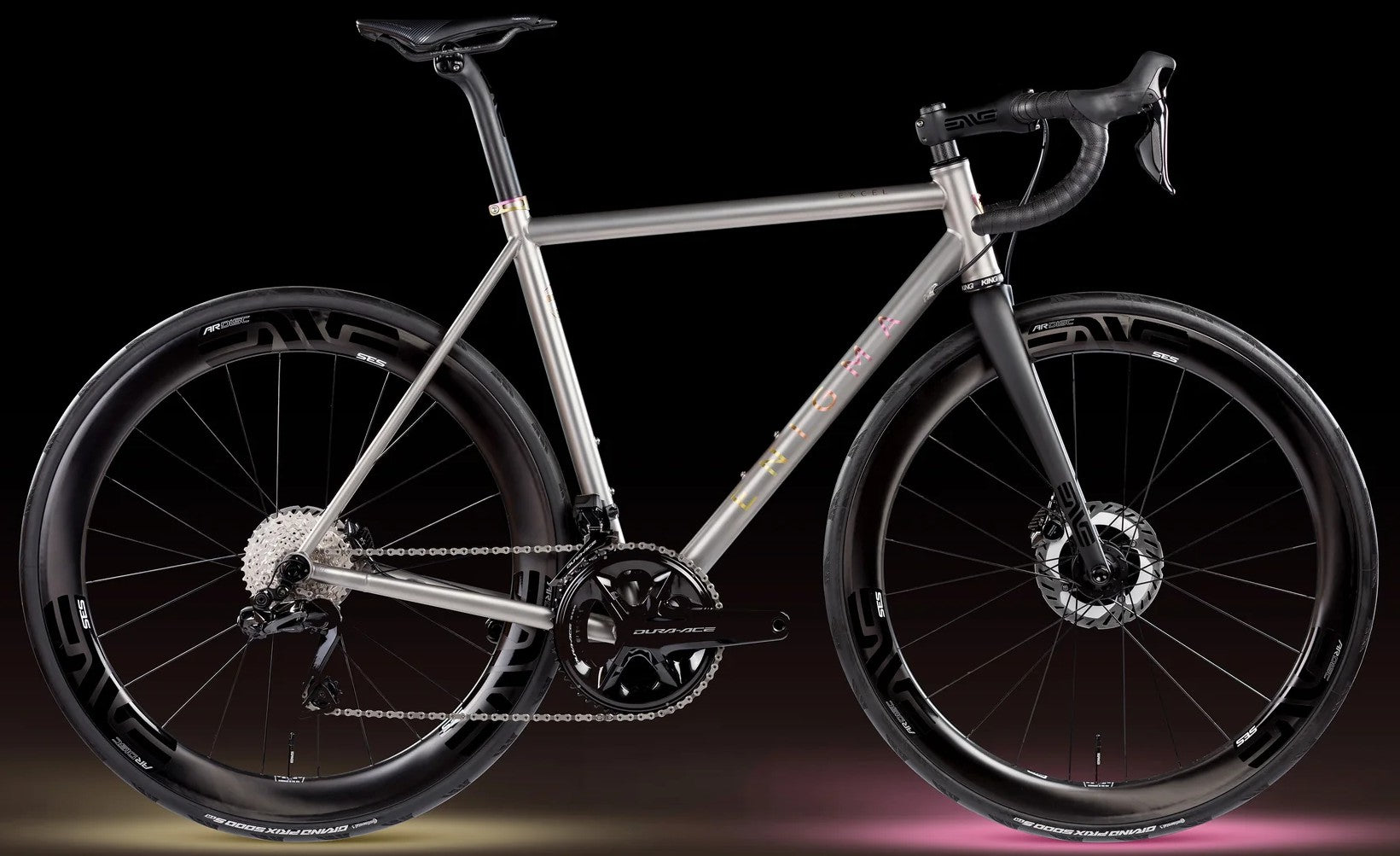

Exquisite craftsmanship. Unmatched performance. The UK-made Signature Excel is a Grade 5 titanium road frame engineered for precision, speed, and the ultimate ride quality.
The Inspiration
In the pursuit of excellence, the Excel Ti64 stands as a testament to our unwavering commitment to quality and innovation. Crafted from 6AL 4V Grade 5 titanium, this frame takes titanium performance to the next level, offering phenomenal, stiffness, and ride refinement.
Renowned for its superior hardness and durability, Grade 5 titanium surpasses the more commonly used 3AL 2.5V, resulting in a frame that delivers exceptional power transfer, smoothness, and responsiveness.
Despite the challenges of working with low-density Grade 5 titanium, our team’s expertise and precision engineering allow us to harness its full potential. The result is a truly exceptional frame, designed for riders who demand the pinnacle of titanium performance.
- Frame Material Custom made 6Al 4V titanium
- Frame Finish Satin bead-blast with brushed or mirror-polished logos
- Headtube CNC machined 44mm
- Bottom Bracket (Disc) Custom machined Ti T47 68mm | (Rim) BSA 68mm
- Dropouts Paragon, thru-axle
- Hanger Type Enigma Type 2
- Brake Mount (Disc)160 front / 140 rear flat mount
- Brake Mount (Rim)Standard single bolt road caliper brake
- Axle Size (Disc) 12mm x 142mm rear bolt-thru
- Axle Size (Rim) 9mm x 130mm rear QR
- Tyre Clearance (Disc) Max. 700c x 32mm
- Tyre Clearance (Rim) Max. 700c x 28mm
- Front Derailleur 34.9mm band-on
- Cable Routing Internal via custom entry ports or fully integrated cockpit option
- Seat Tube External 34.9mm
- Seat Post 31.6mm or 27.2mm with shim
