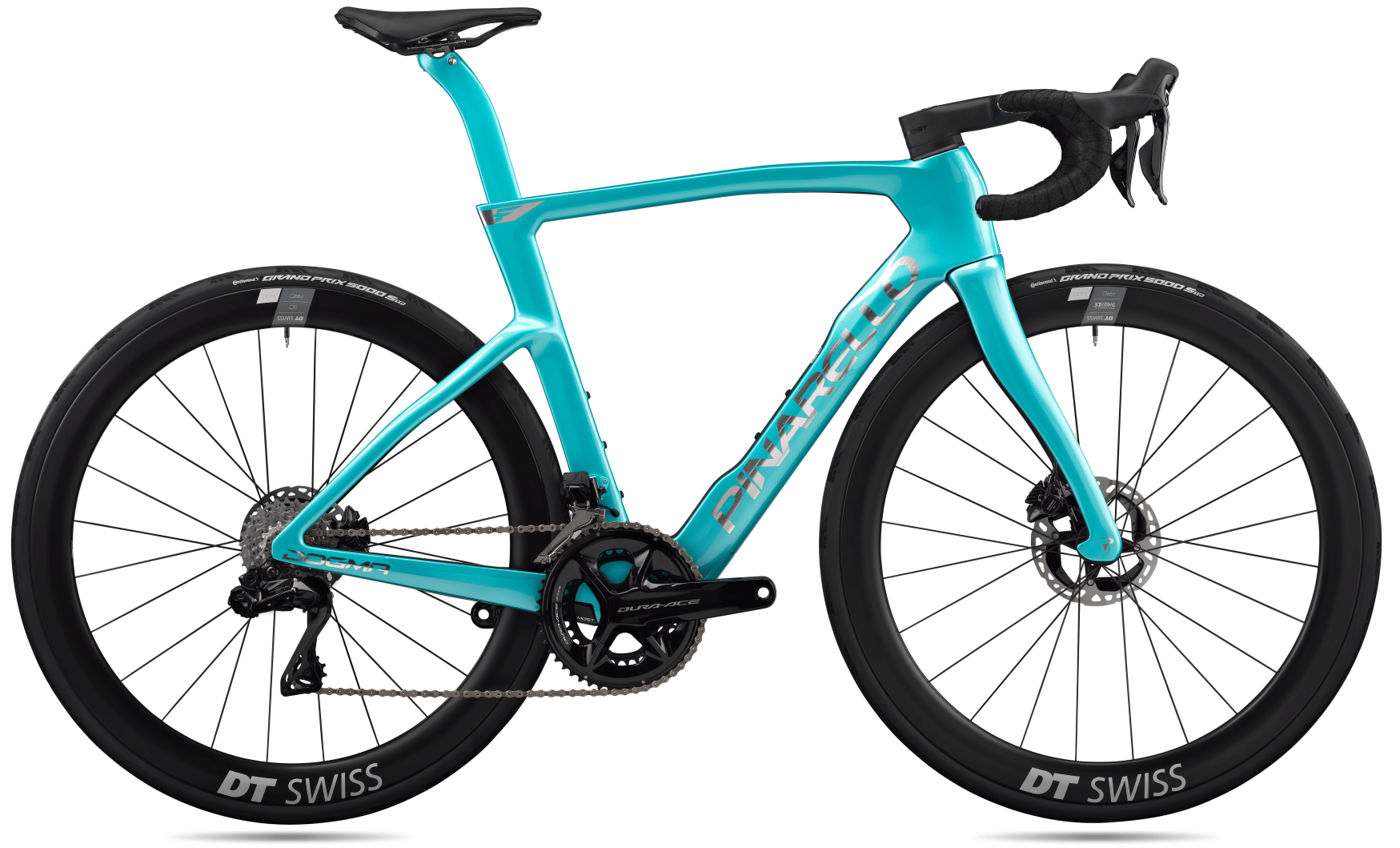

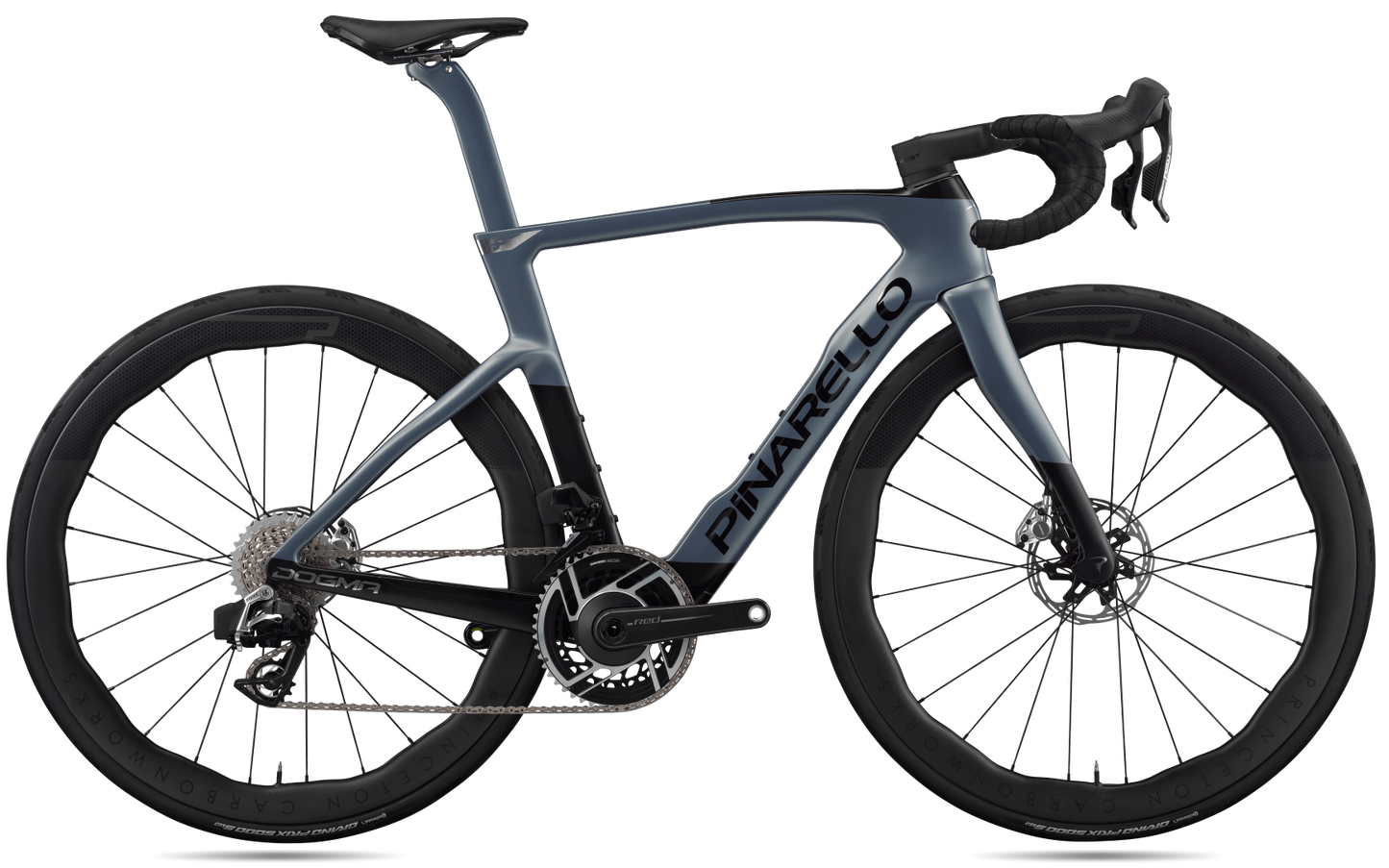

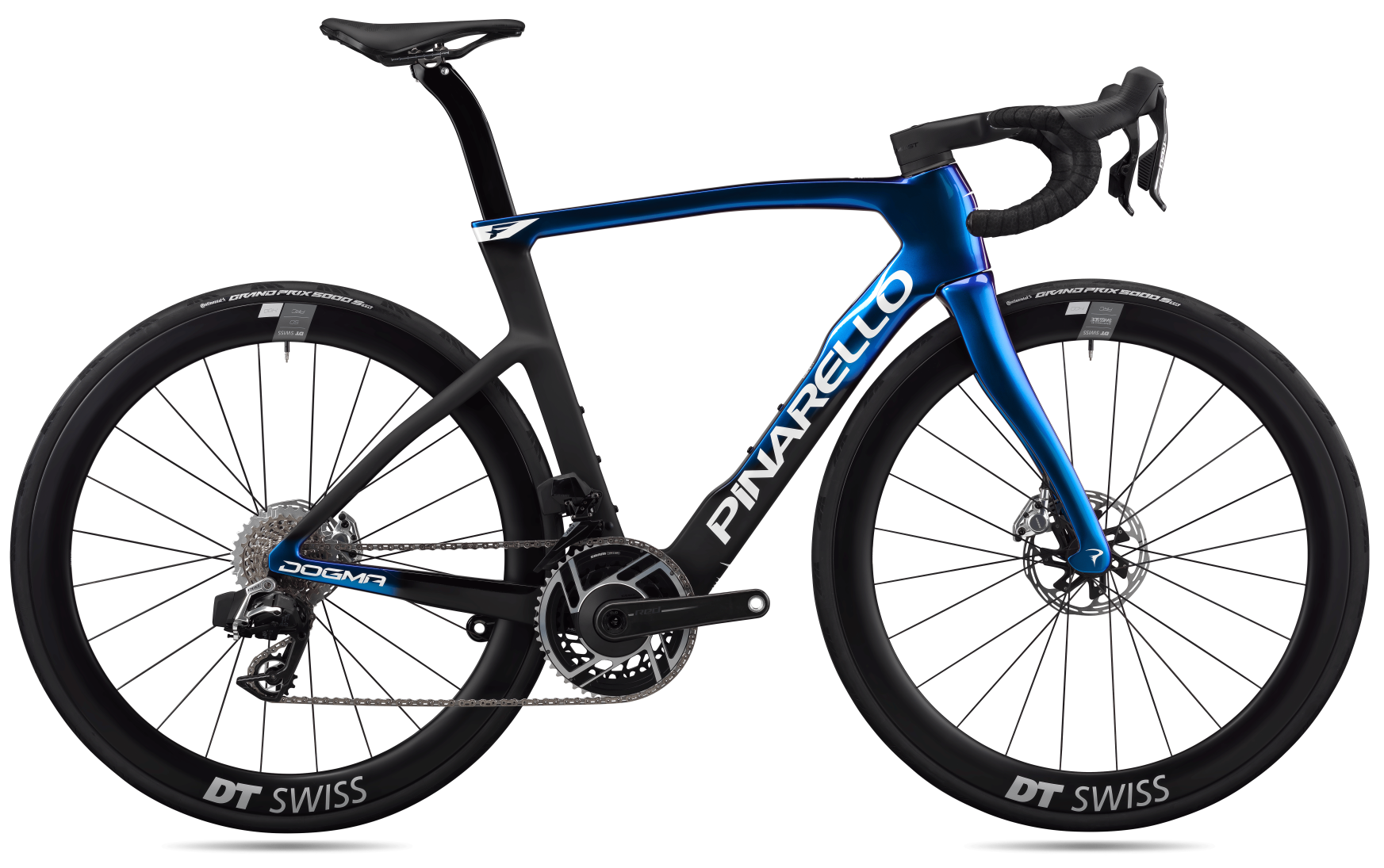

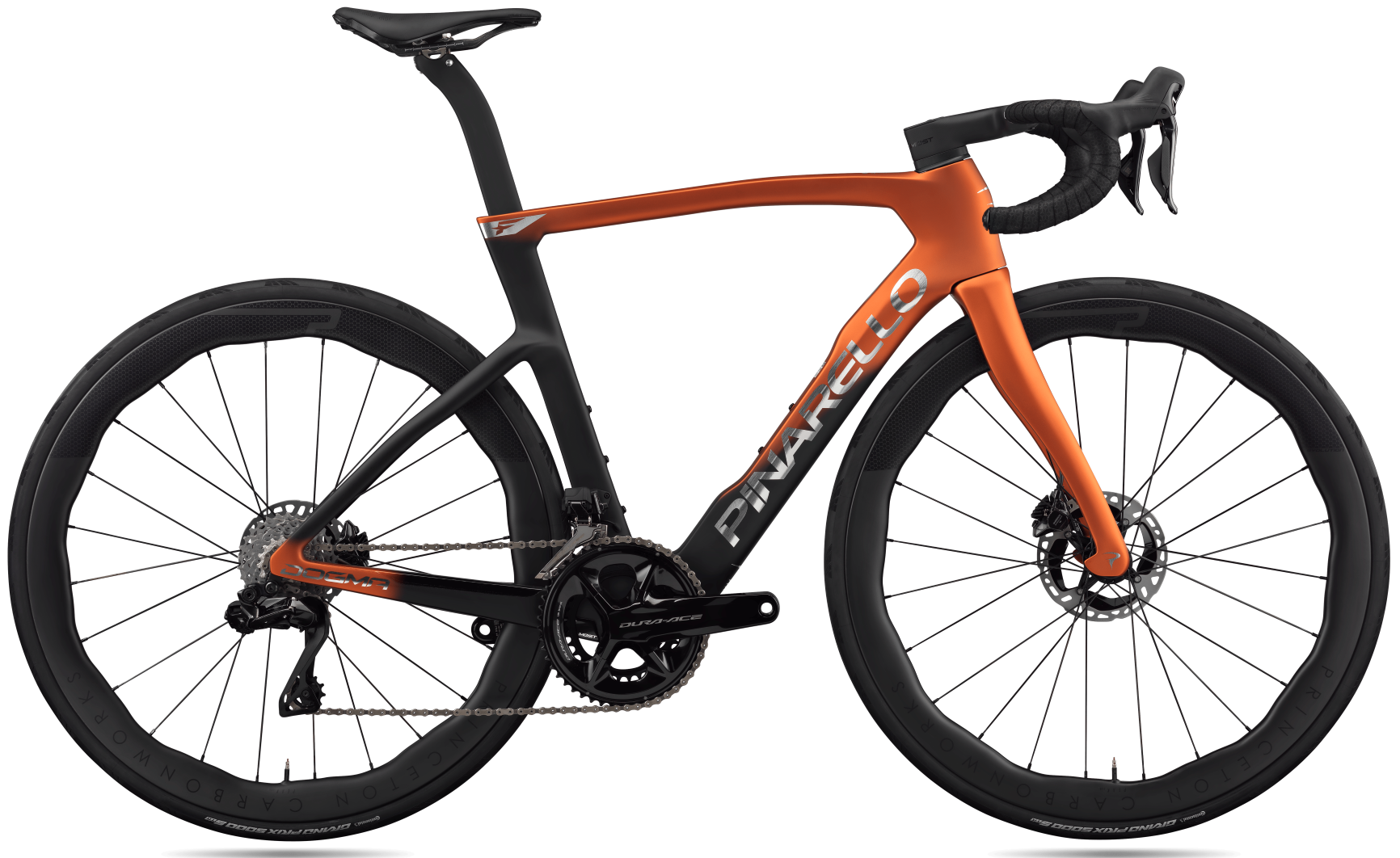

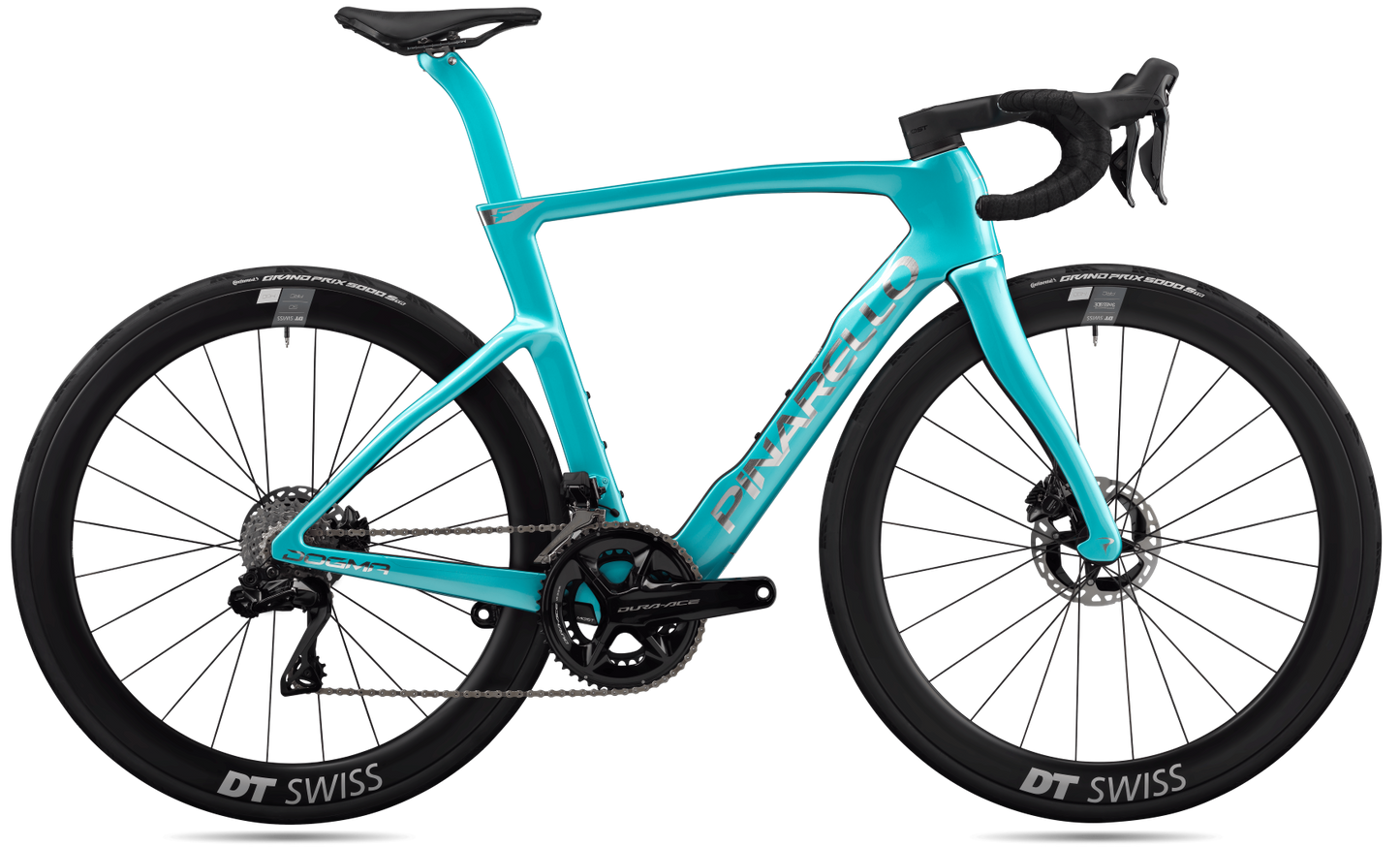

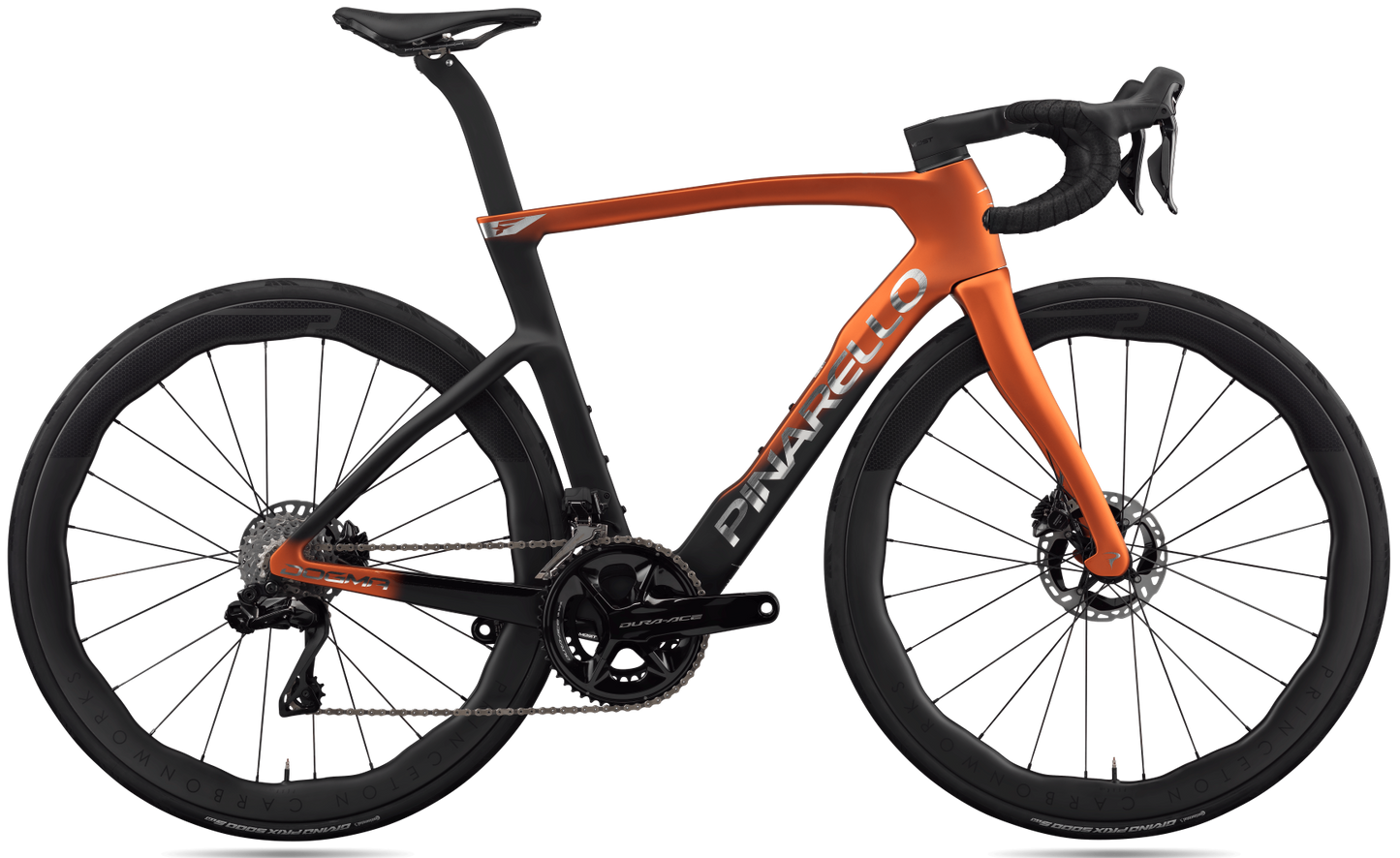

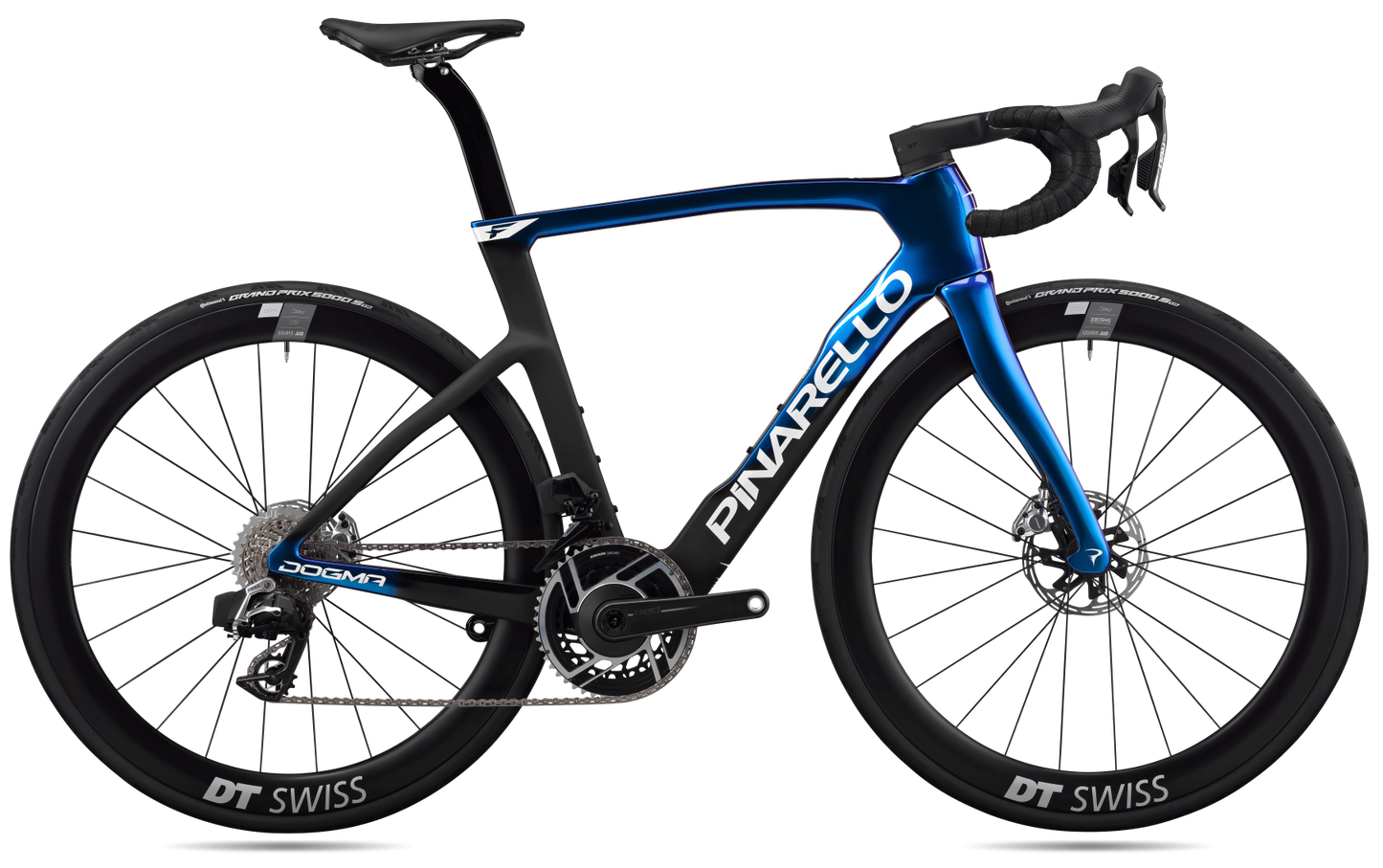

2025 Pinarello Dogma F Dura Ace Di2 DT Swiss ARC 1400

2025 Pinarello Dogma F Dura Ace Di2 DT Swiss ARC 1400

Regular price £12,600.00 GBP
Regular price Sale price £12,600.00 GBP
Sale Enquire
Tax included.
Colour
Size

Pay by finance available

We offer finance at 0% for up to 24 months. To calculate your finance click here.

Bike to work schemes

BW Cycling accepts most bike to work scheme vouchers with no extra charges for bikes. Please contact the store to find out more.

Not in stock?

Please enquire for availability.

DESIGN THE EXCEPTIONAL

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

INNOVATION
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST

CARBONM40X

The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.

DOWNTUBE

The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodynamic performance of the frame and the aero drag.

NEWAERO-KEEL BB

Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.

TOPTUBE

Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.

HEADSET

To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.

THRUAXLES

New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame.

NEW ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.

INTEGRATEDSEAT POST CLAMP

Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.

NEWTALON FAST

The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
WEIGHT
6.77kg. Weight in size 53, Shimano Dura Ace, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Dura Ace FC-R9200, HollowTech 2, 12s
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-9200 12S
REAR DERAILLEUR
Shimano Dura Ace Di2 RD-R9200 12s
CASSETTE
Shimano Dura Ace CS-R9200 12S
CHAIN
Shimano Dura Ace CN-HG 12S
BOTTOM BRACKET
Shimano Dura Ace SM-BB9200
BRAKES
FRONT BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
DT Swiss ARC 1400 50
AXLES DISC
NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

***Bike has Shimano Dura Ace Di2 groupset and DT Swiss wheels not as some of the pictures***
