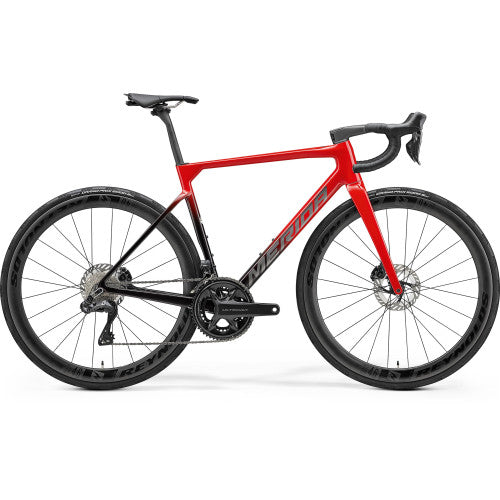

2025 Merida Scultura 9000

2025 Merida Scultura 9000

Regular price £5,800.00 GBP
Regular price Sale price £5,800.00 GBP
Sale Enquire
Tax included.
Size

Pay by finance available

We offer finance at 0% for up to 24 months. To calculate your finance click here.

Bike to work schemes

BW Cycling accepts most bike to work scheme vouchers with no extra charges for bikes. Please contact the store to find out more.

Not in stock?

Please enquire for availability.

Highlights:

  • Superlight CF5 Carbon frame and fork
  • Shimano Ultegra Di2 2 x 12 groupset
  • Shimano Ultegra hydraulic disc brakes with Disc Cooler Technology
  • Reynolds BL 46 Pro DB carbon wheelset with Continental GP5000S TR 28c tyres
  • Fully integrated carbon cockpit
  • Merida S-Flex carbon seat post

High end carbon CF5 framed road bike with Reynolds carbon wheelset and 2 x 12 Shimano Ultegra Di2 transmission and hydraulic disc brakes

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures. The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry. Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!

Specification

Frame - CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c

Fork - Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology

Gears - 24

Shifters - Shimano Ultegra Di2
Front Derailleur - Shimano Ultegra Di2; FD-R8150
Rear Derailleur - Shimano Ultegra Di2; RD-R8150
Bottom Bracket - SM-BB72-41B, Pressfit 86.5
Chain - Shimano CN-M8100-12
Chainset - Shimano Ultegra; 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Cassette - Shimano CS-R8101; 11-30 teeth; 12 speed
Brake Lever - Shimano Ultegra
Front Brake - Shimano Ultegra; Hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Rear Brake - Shimano Ultegra; Hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Grip - Merida Expert
Handlebar - Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
Stem - Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
Head Set - Merida Team SL (OP-203 neck)
Saddle - Scratch M5 with V-mount adapter; includes Merida minitool
Seat Post - Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex
Wheel Size - 700c
Rims - Part of wheelset - Reynolds BL 46 Expert DB; 21mm inner rim width; 41mm rim depth; Carbon; Tubeless ready (tubeless tape and valves included)
Spokes - Part of wheelset
Front Hub - Part of wheelset - Reynolds BL 46 Expert DB, 100 x 12mm; Centerlock
Rear Hub - Part of wheelset - Reynolds BL 46 Expert DB; 142 x 12mm; Centerlock; Shimano HG
Front Tyre - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Rear Tyre - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Colour - Red/Dark Red/Black

Season - 2025
